Multi Use LEV Enclosure

The Multi-Use LEV range of enclosures use a unique CAV (Constant Air Volume) sliding sash mechanism that allows the operator to have variable height access to equipment and processes. The sash mechanism is integrated into a hinged door mechanism that allows the operator to ‘wheel in’ various bench systems containing the equipment or process that require containment. Large pieces of equipment can be easily introduced and removed providing a flexible containment area for infrequent containment applications.

  • Safe working environment for active drug handling
  • Safe change HEPA filtration
  • Easy access for maintenance & setup
  • No facilities extract required
  • Low air volume requirement
  • Direct connect or recirculatory options
  • Custom built solutions available
Loading...

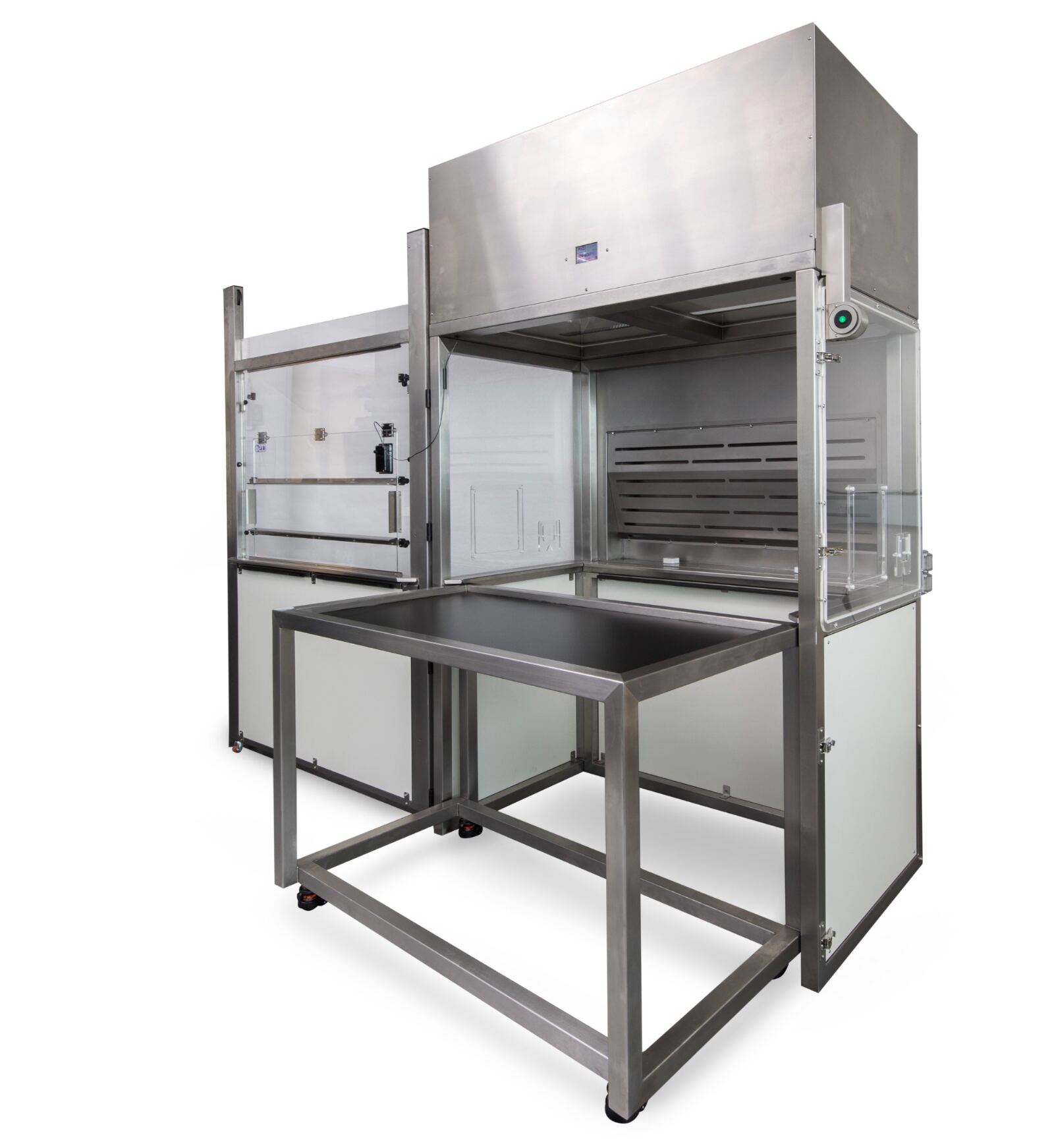

Multi Use LEV Enclosure

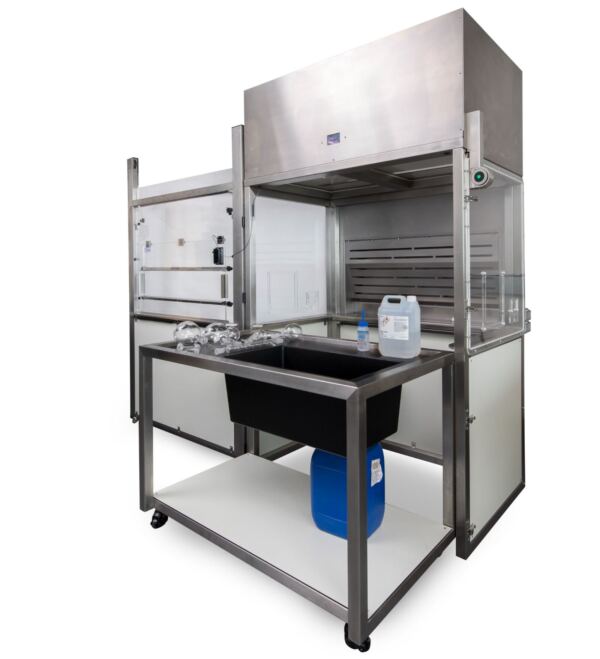

Multi Use LEV Enclosure - Image 2

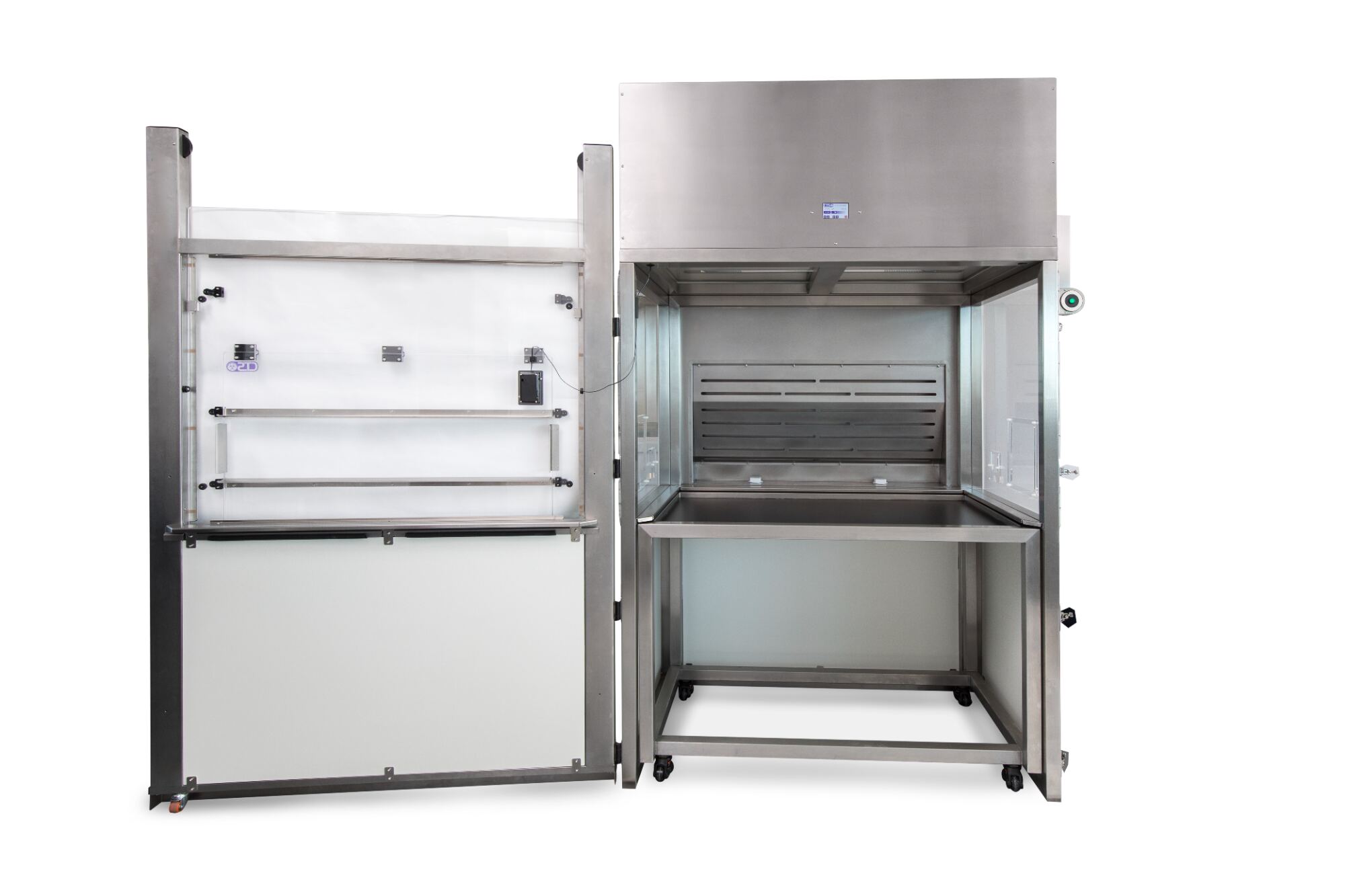

Multi Use LEV Enclosure - Image 3

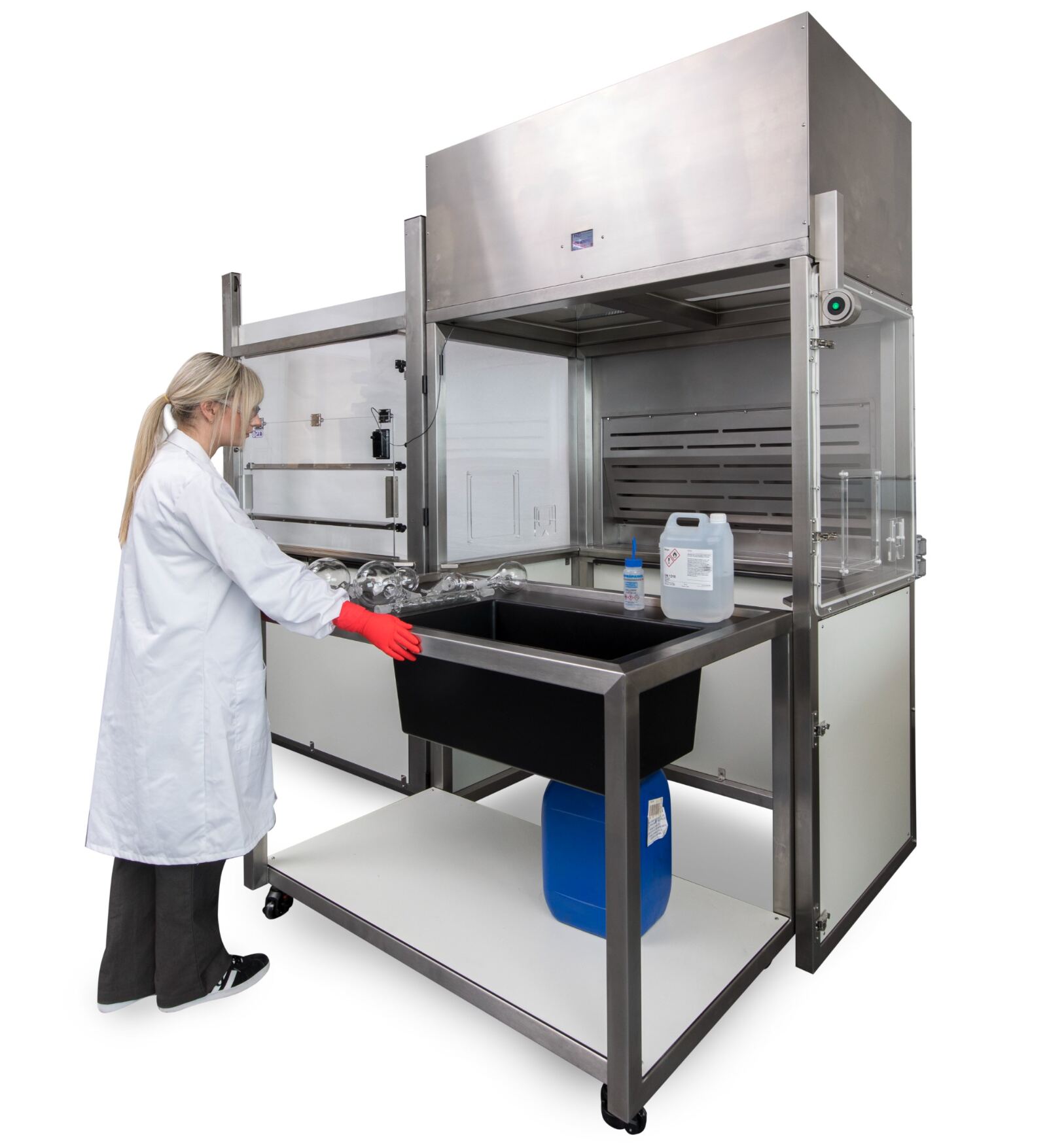

Multi Use LEV Enclosure - Image 4

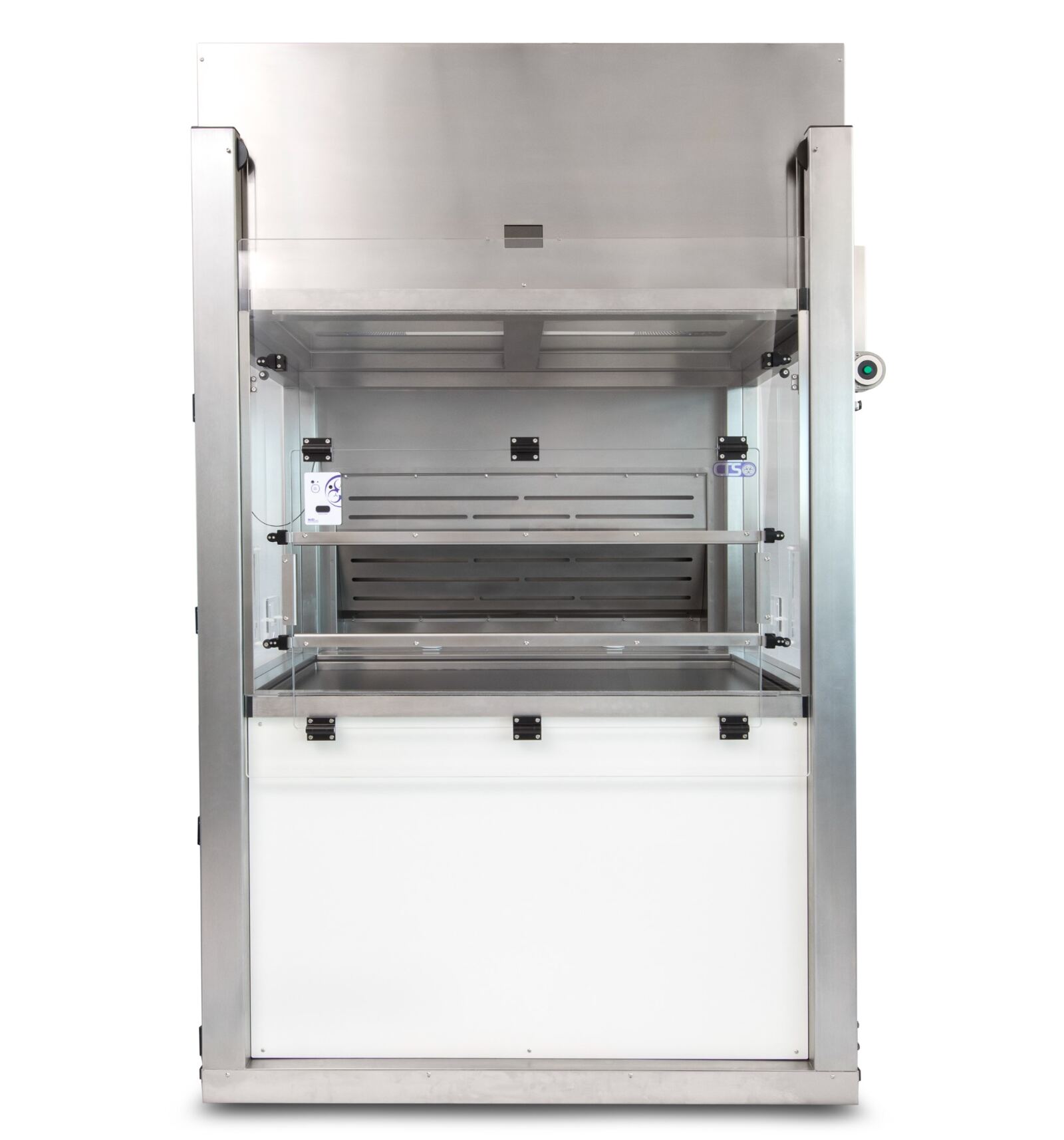

Multi Use LEV Enclosure - Image 5

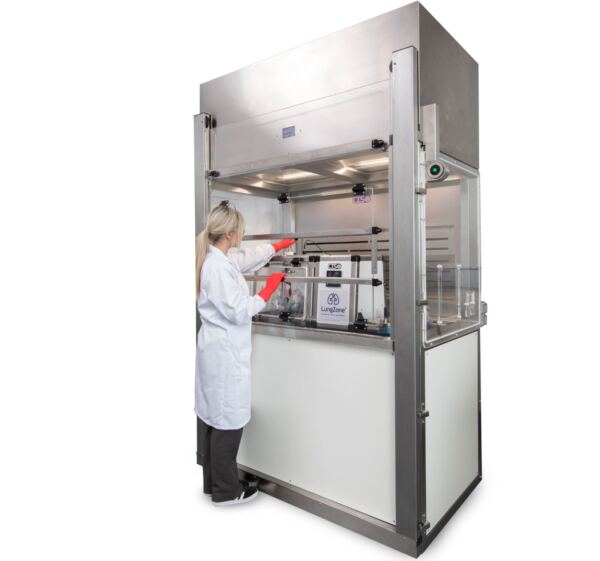

Multi Use LEV Enclosure - Image 6
SKU: LEV Category:

Download the technical specification of this enclosure using the following button. Alternatively, watch the video below for more details. If you are looking for a bespoke LEV enclosure for high potency powders, please contact us.

Technical Datasheet

CONSTRUCTION

  • Stainless steel skeletal frame and bench
  • 8mm Optically clear cast acrylic panels
  • Black Trespa base

SYSTEM DESIGN

  • LEV enclosure for high potency powders are designed to customer specification
  • easy access and maintenance


POWER REQUIREMENTS

  • 230v/50Hz/13A Service (EU)
  • 110v/60Hz/20A Service (USA)

FILTRATION and AIRFLOW MONITORING

  • Safe change HEPA filtration
  • Low Flow Constant Air Volume Extraction
  • Min 99.995% efficiency at 0.3 microns (H14)
  • Continual airflow monitoring with Audible / Visual alarm
