SafetyBoxTM Powder Handling Glovebox

CTS Powder Handling Glove Box systems provide a safe controlled environment for the weighing and manipulation of high potency drugs with OEL’s less than 1 μg/m3.

CTS SafetyBoxTM enclosures operate as a single pass through negative pressure HEPA filtered glove box. Air is passed into the enclosure via a safe change HEPA filter and exits via two more HEPA filters back into the laboratory, or if required, into the laboratory extract system.

  • Negative pressure environment
  • Safe change HEPA filtration
  • Sample transfer chamber
  • ECL designed to 5ng/m3
  • Stable weighing environment
  • Ergonomic design
  • Easy to clean
  • Custom built solutions available

Loading...

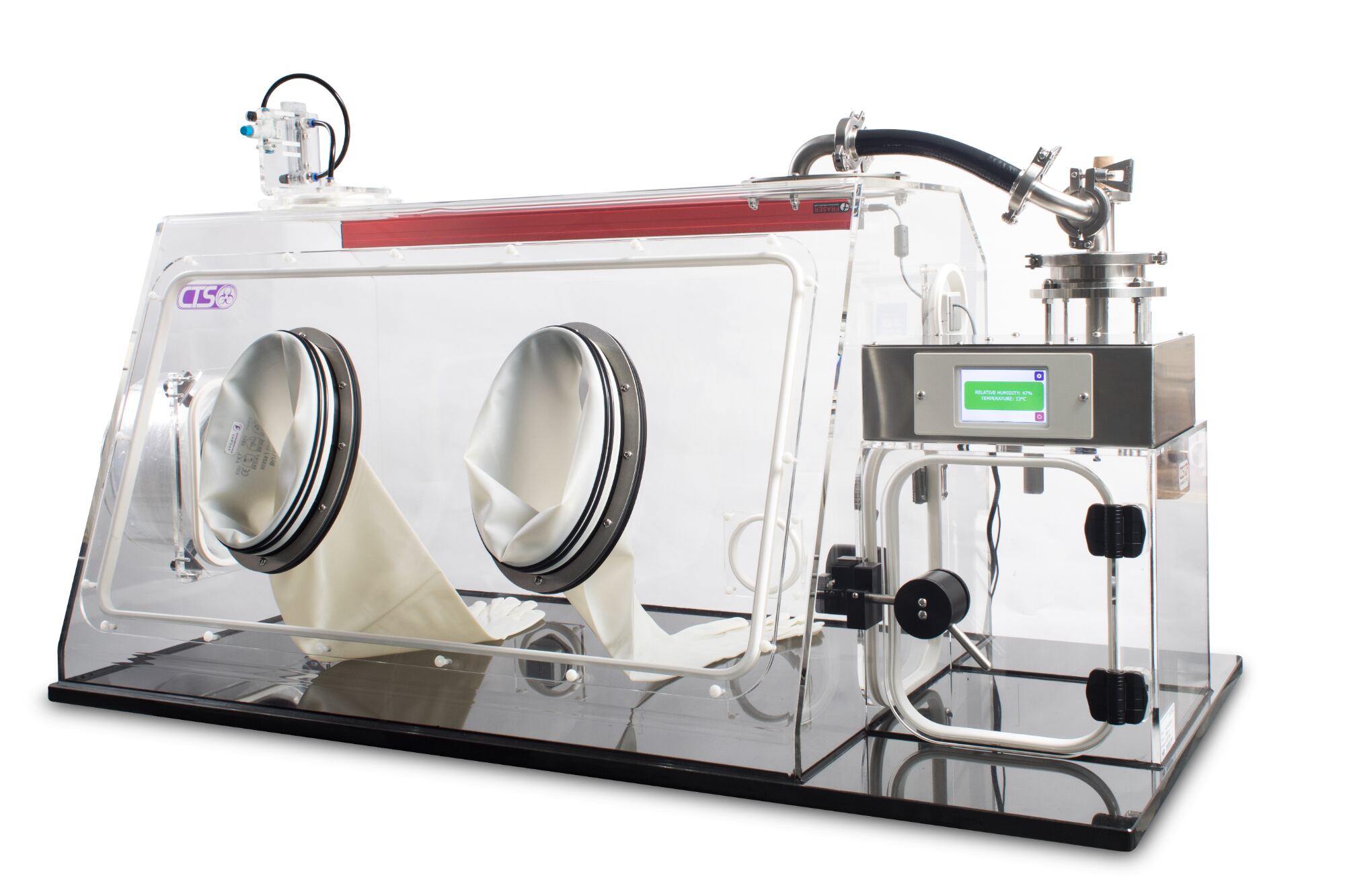

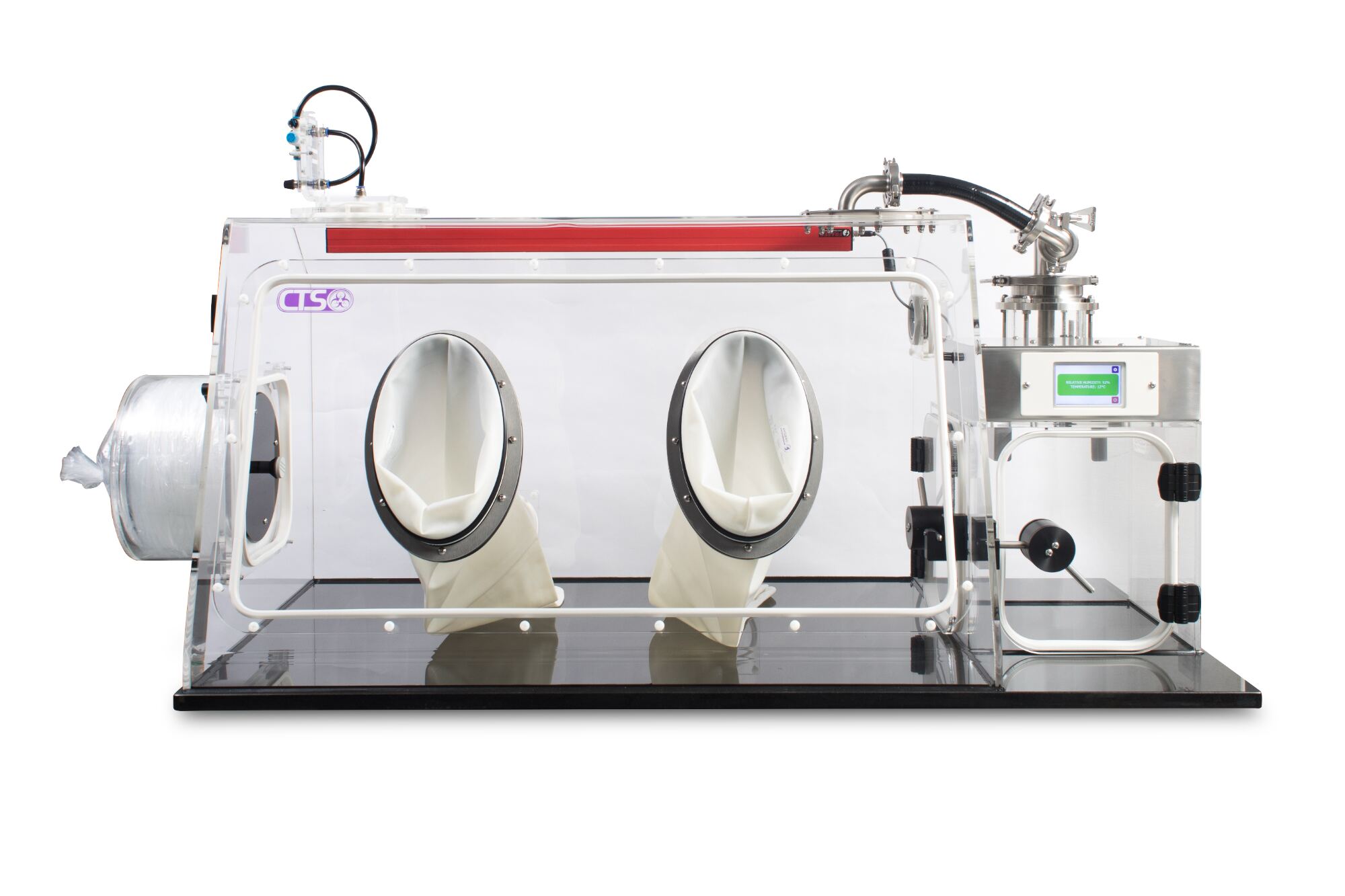

Powder Handling Glovebox with four glove ports

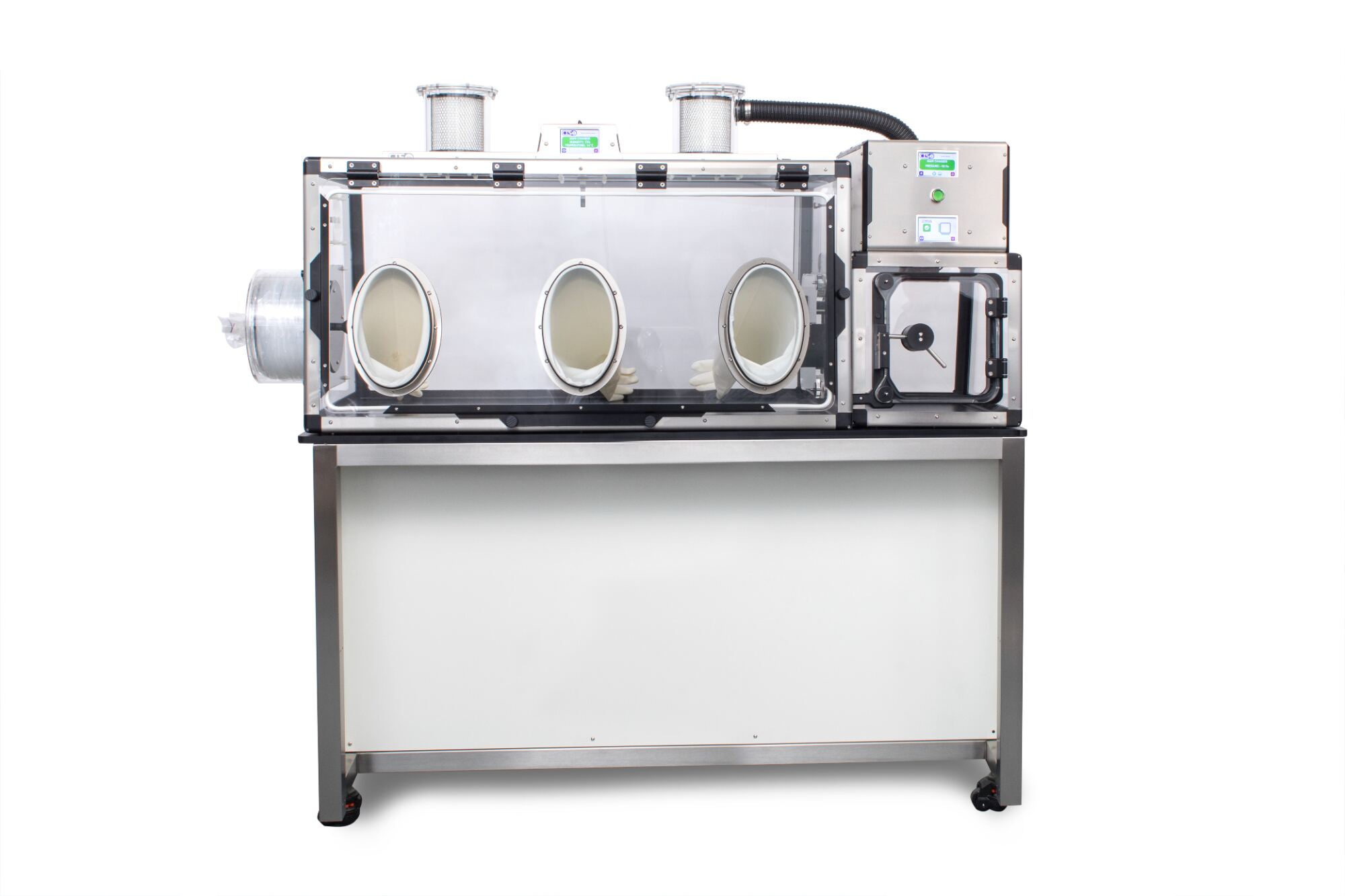

containment safety glovebox with single pass through operation airflow and a stainless steel trespa
Analysist using measuring equipment with the arms in anti static golves

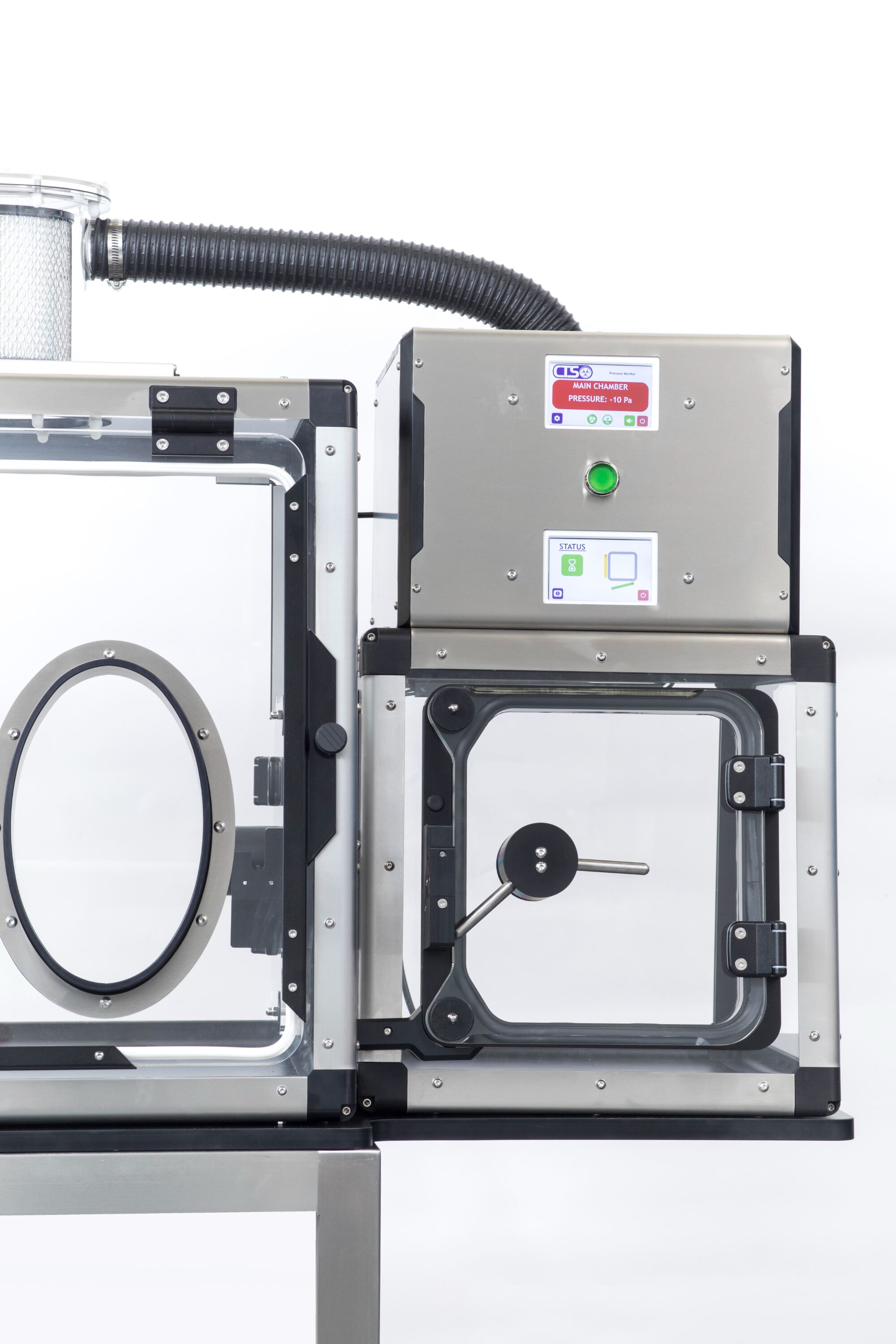

Anaylists hand in the anti static gloves putting a hazardess shute bag in the transfer chamber

Customisable Design

SKU: SB Category:

Download the technical specification of this powder handling glovebox using the following button.
If you are looking for a bespoke glovebox, please contact us.

Technical Datasheet

CONSTRUCTION

  • Main chamber: 8mm Optically clear cast acrylic
  • Base: TRESPA TM, Granite or Stainless Steel
  • Bench: 304 Stainless steel
  • Gloves: Anti static Nitrile Gauntlet

DIMENSIONS (mm) – (W x D x H)

External / Internal
1200 x 650 x 1450 / 880 x 600 x 550
1500 x 650 x 1450 / 1180 x 600 x 550
1800 x 650 x 1450 / 1480 x 600 x 550

Get in touch to discuss your specific requirements if you are looking for a custom built powder handling glovebox.

POWER REQUIREMENT (SINGLE PHASE)

  • 230v/50Hz/13A Service (EU)
  • 110v/60Hz/20A Service (USA)

FACILITIES REQUIREMENT

  • Re-circulatory design, can be stand-alone operation or connected direct to house extract

Standard system includes:

  • Transfer chamber
  • Magnehelic pressure gauge

System upgrades include

  • Interlocked transfer hatch
  • Audible pressure alarm

FILTRATION

  • Safe-change HEPA filter
  • Modular air handling filtration unit
  • Min 99.995% efficiency at 0.3 microns (H14)
  • Activated Carbon filtration available

AIRFLOW MONITORING

  • Continual airflow monitoring using a dual sensor hot wire anemometer complete with Audible / Visual alarm
