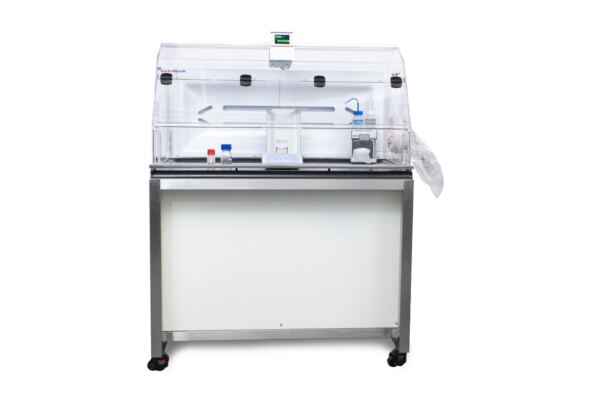

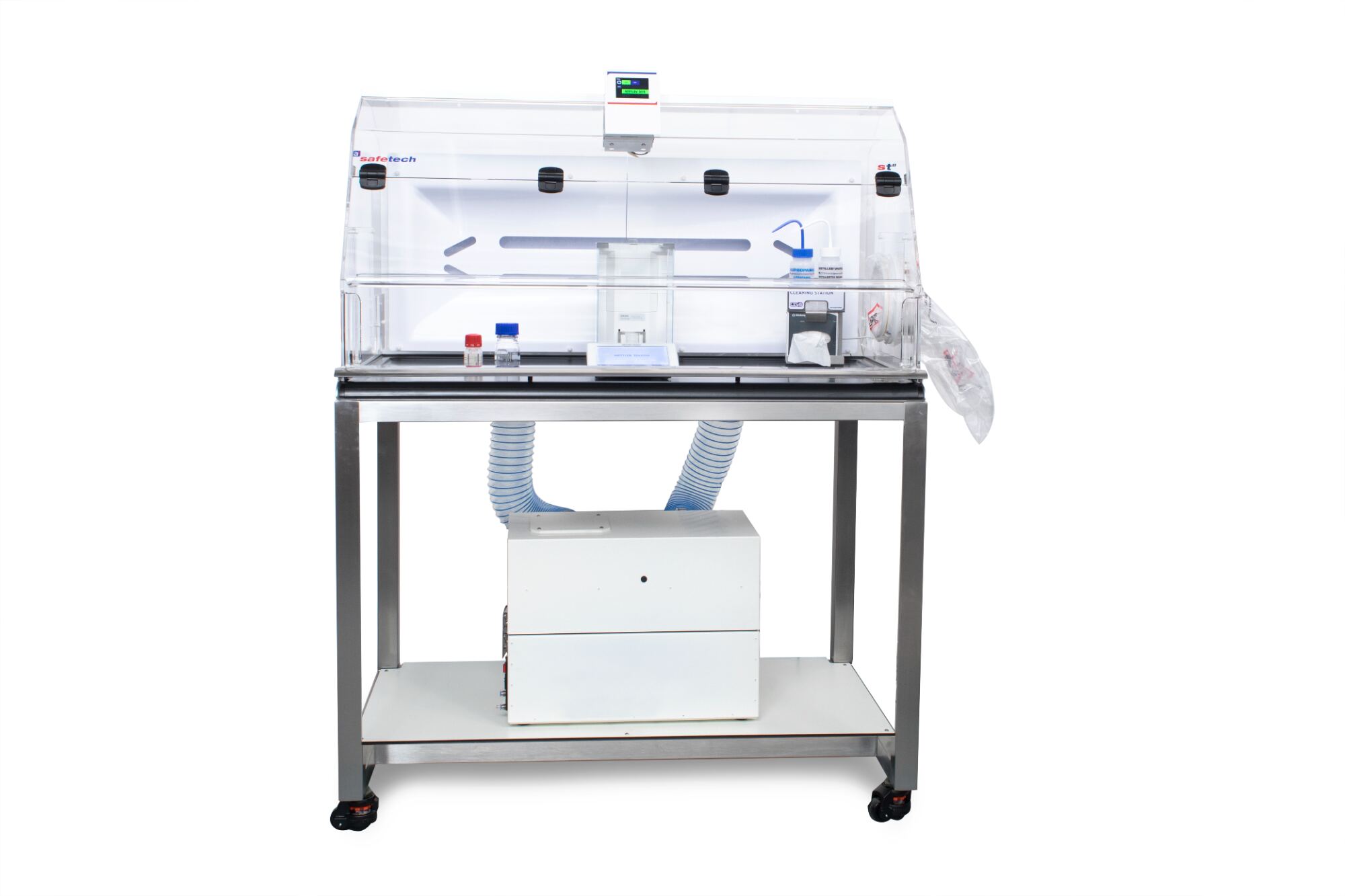

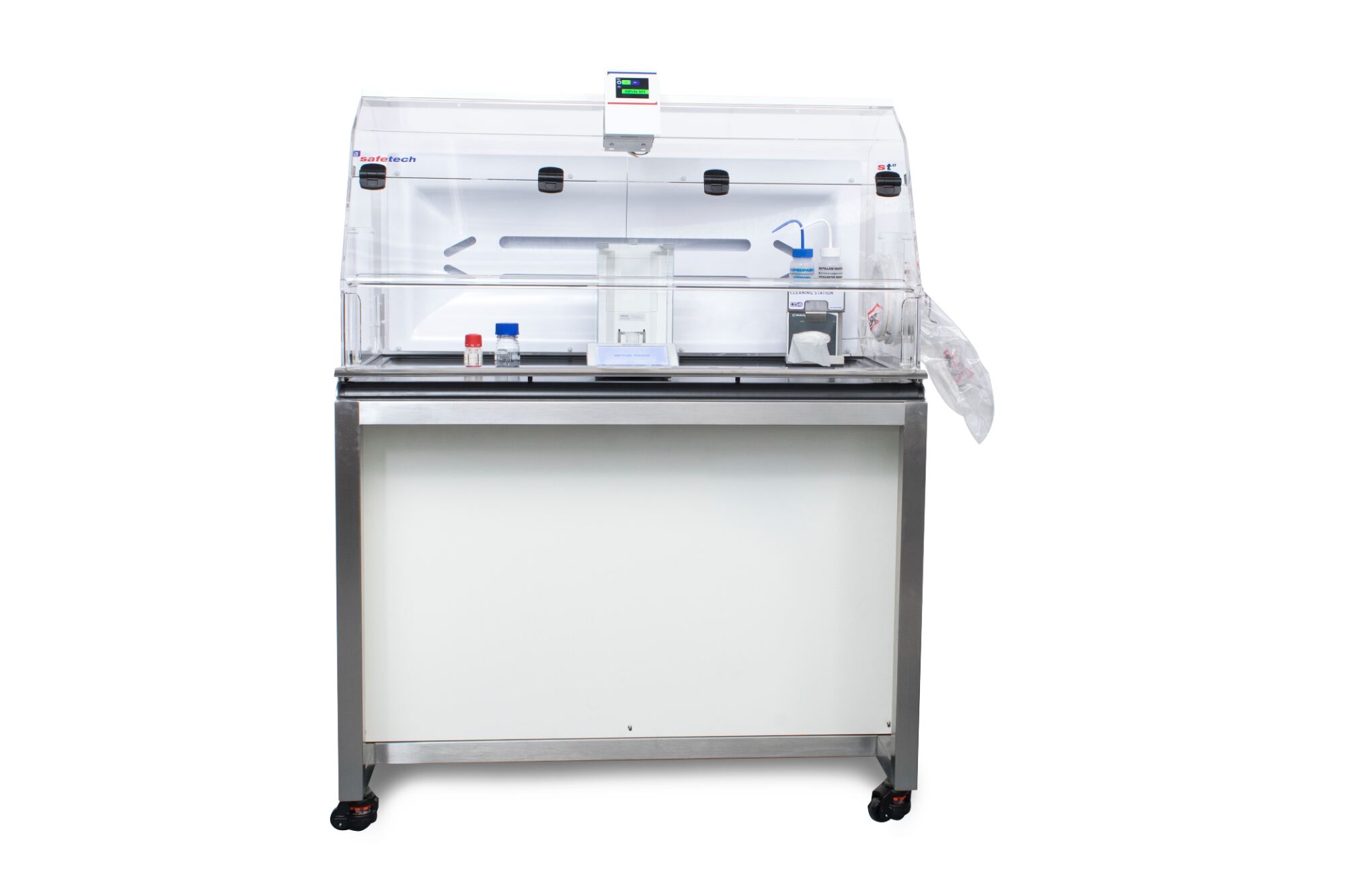

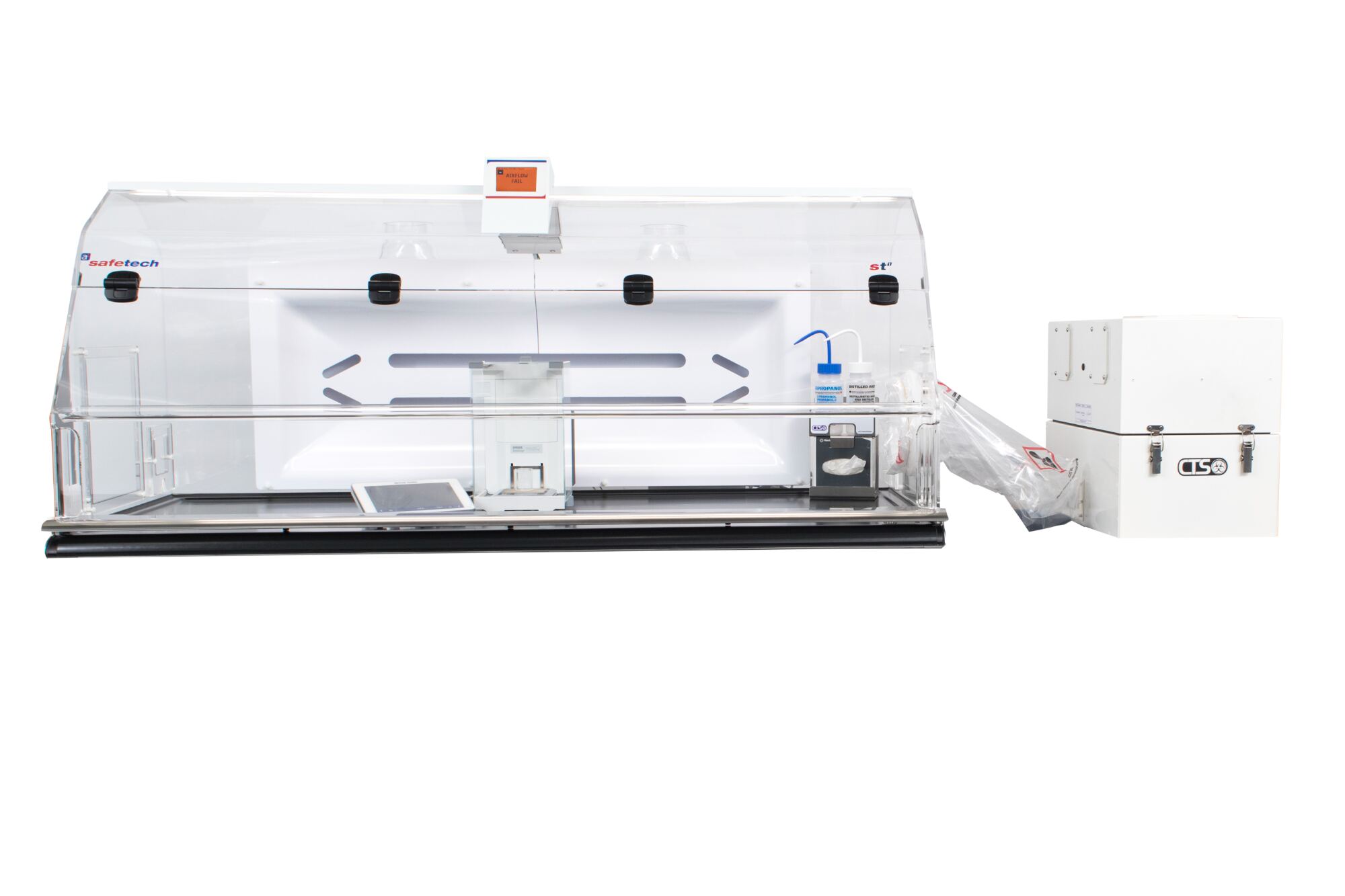

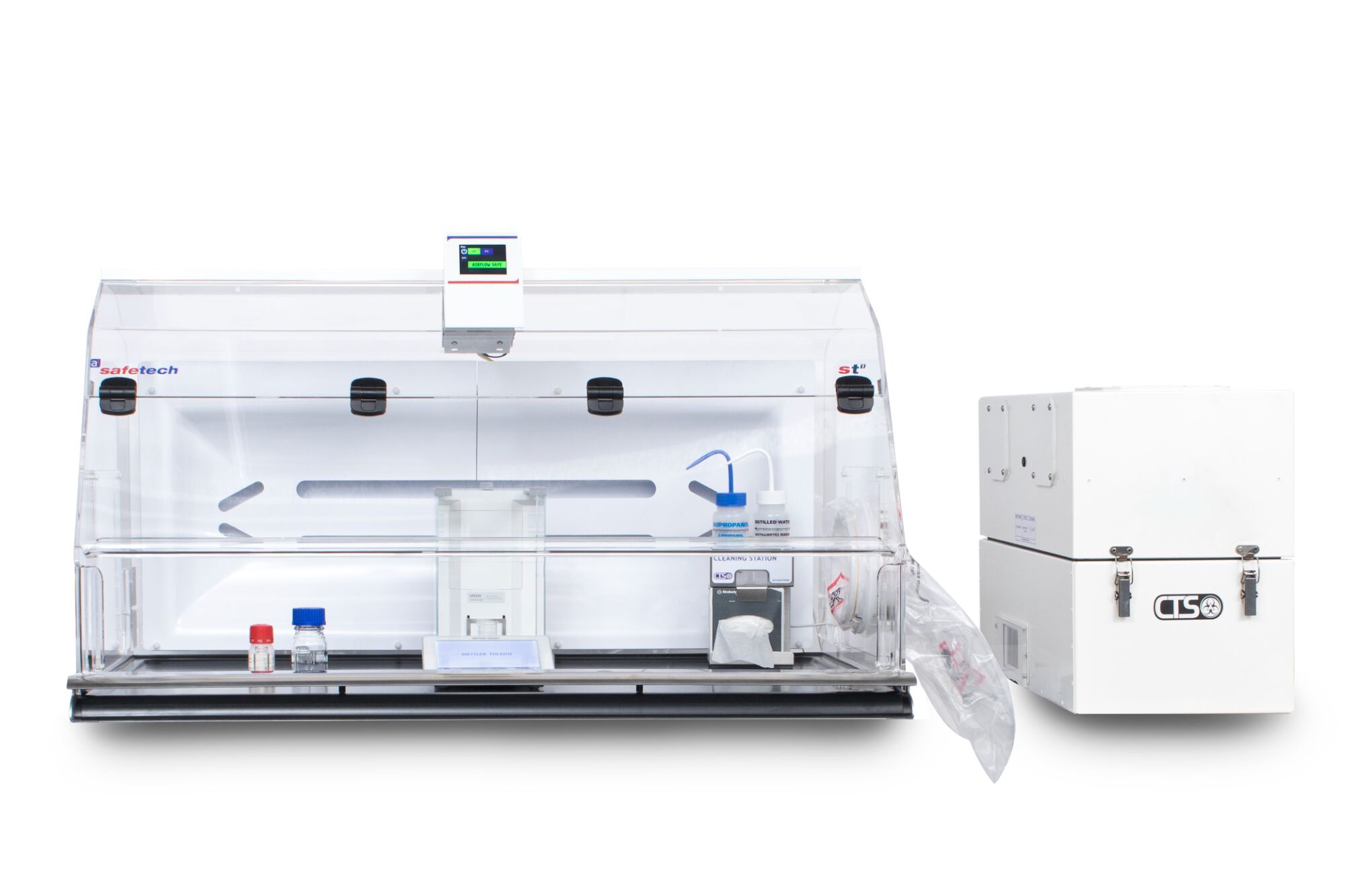

ST1 Potent Powder Weighing Enclosure

Used by major pharmaceutical companies worldwide, the ST1 Potent Powder
Weighing Enclosure is the recognised leader for safe weighing environments.
The ST1 Potent Powder Weighing Enclosure is specifically designed and independently
tested to protect the analyst from airborne contaminants when weighing potent
compounds.

  • Safety performance – ECL 15ng/m3
  • Containment tested to EN14175 and ASHRAE110
  • Surrogate powder tested by SafeBridge ConsultantsTM
  •  Turbulance free weighing environment
  •  Safe change HEPA filtration system
  •  Low air volume requirement
  •  Ceramic base
  •  Dual sensor air flow alarm system
  • Safe waste disposal
  • Custom built solutions
Loading...

Customisable Design

SKU: ST1 Category:
ST1 Potent Powder Weighing Enclosure – Technical Specification

The ST1 Balance enclosures guarantee balance stability whilst providing proven protection from exposure to potent compounds. ST1 Balance weighing enclosure systems are specifically designed for the handling and weighing of potent compounds from milligram to kilogram quantities. In addition, the unique patented airflow and cleaning design provides a turbulence-free environment for sensitive analytical and microbalances.

ST1 Ergonomic Design

The ergonomic profile design makes the ST1 Potent Powder Weighing Enclosure comfortable and easy to use. These enclosures are designed with an increased internal depth therefore they can accommodate deeper balances whilst minimising bench space.

ST1 Technical Specification

Please find below a video and the technical specification for this laboratory safety enclosure. Alternatively, download the technical specification using the following button. Alternatively, watch the video below for more details. If you are looking for a bespoke safety enclosure, please contact us.

CONSTRUCTION

  • 8mm Optically clear cast acrylic body
  • Black ceramic base
  • Stainless steel mobile bench available
  • Space saving roof mounted filtration available

DIMENSIONS (mm) – (W x D x H)

External / Internal

900 x 750 x 600 / 850 x 600 x 580
1200 x 750 x 600 / 1180 x 600 x 580
1500 x 750 x 600 / 1480 x 600 x 580
1800 x 750 x 600 / 1750 x 600 x 580

If you are looking for a Custom built solution for a Potent Powder Weighing Enclosure, please contact us to discuss your requirements.

POWER REQUIREMENT (SINGLE PHASE)

  • 230v/50Hz/13A Service (EU)
  • 110v/60Hz/20A Service (USA)



FACILITIES REQUIREMENT

  • Re-circulatory design, can be stand-alone operation or connected direct to house
    extract

FILTRATION

  • Safe-change HEPA filter
  • Modular air handling filtration unit
  • Min 99.995% efficiency at 0.3 microns (H14)
  • Activated Carbon filtration available


AIRFLOW MONITORING

  • Continual airflow monitoring using a dual sensor hot wire anemometer complete with audible / visual alarm
